Build CI/CD pipelines

The repository includes two main workflows and one supporting workflow. Both main workflows run the same Fluent API tests but differ in how they handle failures.

Workflow 1: Test Flight Booking Fluent - Kahu

File: test_adk_flight_booking_fluent_kahu.yml

This workflow runs the agent tests and, on failure, creates a GitHub issue and triggers the Kahu SRE Agent for automated root cause analysis.

graph LR
    A[Run Tests] -->|Fail| B[Resolve Traces]
    B --> C[Call Kahu SRE Agent]
    C --> D[Create Issue with Analysis]

How it works

1. Run tests with continue-on-error: true so the workflow continues past failures:

   - name: Run test_adk_flight_booking_fluent.py
     id: test
     continue-on-error: true
     env:
       MONOCLE_EXPORTER: okahu
     run: |
       set -o pipefail
       pytest tests/test_adk_flight_booking_fluent.py -v 2>&1 | tee test_output.txt
       echo "test_exit_code=$?" >> $GITHUB_OUTPUT


2. Resolve traces from Okahu Cloud using the GitHub run ID:

   - name: Resolve traces via Kahu
     id: traces
     if: steps.test.outcome == 'failure' || steps.test.outputs.test_exit_code != '0'
     env:
       OKAHU_API_KEY: ${{ secrets.OKAHU_API_KEY }}
       APP: ${{ secrets.CICD_OKAHU_APP_NAME }}
       QUERY: investigate test failure on github_${{ github.run_id }}
     run: python scripts/kahu_resolve_traces.py


3. Call the Kahu SRE Agent with the trace IDs to get root cause analysis:

   - name: Call Kahu SRE Agent
     id: kahu
     if: steps.test.outcome == 'failure' || steps.test.outputs.test_exit_code != '0'
     env:
       OKAHU_API_KEY: ${{ secrets.OKAHU_API_KEY }}
       APP: ${{ secrets.CICD_OKAHU_APP_NAME }}
       QUERY: investigate test failure on github_${{ github.run_id }}
       TRACE_IDS: ${{ steps.traces.outputs.trace_ids }}
     run: python scripts/kahu_call_agent.py


4. Create a GitHub issue with the full test output and Kahu analysis embedded:

   - name: Create GitHub Issue with Kahu analysis
     id: create_issue
     if: steps.test.outcome == 'failure' || steps.test.outputs.test_exit_code != '0'
     env:
       GH_TOKEN: ${{ secrets.GH_PAT || secrets.GITHUB_TOKEN }}
       WORKFLOW_NAME: test_adk_flight_booking_fluent_kahu.yml
       TEST_FILE: test_adk_flight_booking_fluent.py
       TEST_OUTPUT_PATH: test_output.txt
       KAHU_RESPONSE: ${{ steps.kahu.outputs.response }}
     run: python scripts/create_failure_issue.py


---

Workflow 2: Test Flight Booking Fluent - Claude + Okahu Eval

File: test_adk_flight_booking_fluent_auto_pr_claude_okahu_eval.yml

This workflow also runs the tests and creates an issue on failure, but goes further — it assigns Claude as an AI coding agent to investigate, fix the code, and run Okahu evaluations.

graph LR
    A[Run Tests] -->|Fail| B[Resolve Traces]
    B --> C[Call Kahu SRE Agent]
    C --> D[Create Issue with Analysis]
    D --> E[Assign Claude Agent]
    E --> F[Claude Investigates]

How it works

1. Run tests — same as Workflow 1, with traces sent to Okahu Cloud via MONOCLE_EXPORTER: okahu.

2. Resolve traces and call Kahu — same as Workflow 1: resolve trace IDs, call the Kahu SRE Agent, and create an issue with the test output and Kahu analysis embedded.

3. Assign Claude to the issue using the GitHub GraphQL API:

   - name: Assign Claude agent
     if: steps.test.outcome == 'failure' || steps.test.outputs.test_exit_code != '0'
     env:
       GH_TOKEN: ${{ secrets.GH_PAT || secrets.GITHUB_TOKEN }}
       ISSUE_NUM: ${{ steps.create_issue.outputs.issue_number }}
     continue-on-error: true
     run: |
       set -euo pipefail
       ISSUE_NODE_ID="$(gh api "repos/${{ github.repository }}/issues/${ISSUE_NUM}" --jq .node_id)"
       QUERY="$(printf 'mutation { addAssigneesToAssignable(input: { assignableId: "%s", assigneeIds: ["BOT_kgDODnPHJg"] }) { assignable { ... on Issue { assignees(first: 10) { nodes { login } } } } } }' "$ISSUE_NODE_ID")"
       gh api graphql -f query="$QUERY"
       COUNT="$(gh api "repos/${{ github.repository }}/issues/${ISSUE_NUM}" --jq '[.assignees[] | select(.login == "Claude")] | length')"
       if [ "${COUNT}" -eq 0 ]; then
         echo "::warning::Claude was not assigned. Set GH_PAT (repo/issues) or assign Claude in the UI."
         gh issue comment "${ISSUE_NUM}" --body "Automated assign to Claude did not apply. Assign **Claude** in the sidebar, or add a \`GH_PAT\` secret and re-run." || true
       fi


   Once assigned, Claude reads the issue — which already contains the test output and Kahu's root cause analysis — then investigates the failure using Okahu MCP tools and posts its findings as a comment.

Key difference

	Kahu workflow	Claude + Okahu Eval workflow
Failure response	Issue created with Kahu RCA embedded	Issue created with Kahu RCA + Claude assigned to investigate
Agent	Kahu SRE Agent (analysis only)	Claude Code (reads Kahu analysis, investigates further)
Issue content	Test output + Kahu analysis	Test output + Kahu analysis + Claude's findings
Permissions	contents: read	contents: write, pull-requests: write

---

Kahu SRE Agent workflow

File: kahu_sre_agent.yml

This supporting workflow is triggered by @kahu-agent mentions in issue comments. It is not part of the automated failure flow — Kahu analysis is already embedded in the issue when it is created. Use this workflow to ask Kahu follow-up questions interactively.

What it does

1. Checks org membership to restrict execution to authorized users
2. Extracts the query from the @kahu-agent comment (e.g., investigate test failure on github_12345 for app my_app)
3. Resolves trace IDs by calling the Okahu API with the GitHub run ID, then fetches span details for each trace to build context
4. Calls the Kahu SRE Agent API with the full query and trace context
5. Posts the analysis back as a comment on the issue

if: |
  (
    (github.event_name == 'issue_comment' && contains(github.event.comment.body, '@kahu-agent'))
  )

Ask Kahu follow-up questions

Comment @kahu-agent <your question> on any issue to ask Kahu follow-up questions — for example, @kahu-agent why did step 3 fail? or @kahu-agent compare this trace to the previous run.

Running the workflows

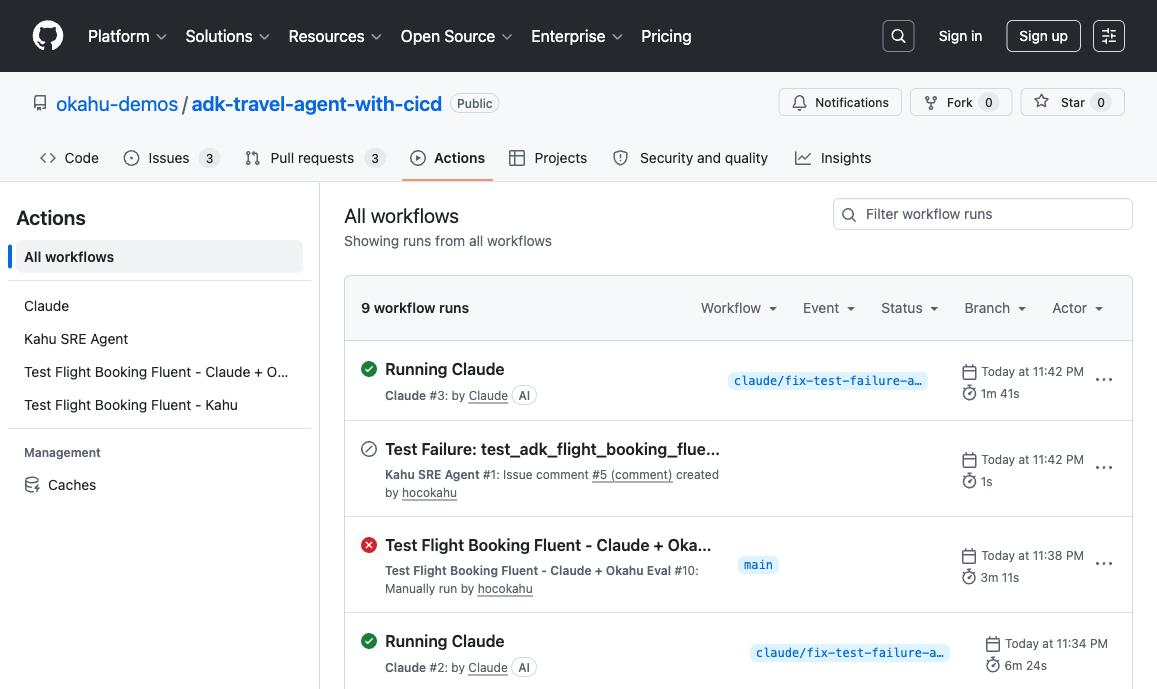

1. Go to the Actions tab in your forked repository
2. Select either workflow from the left sidebar

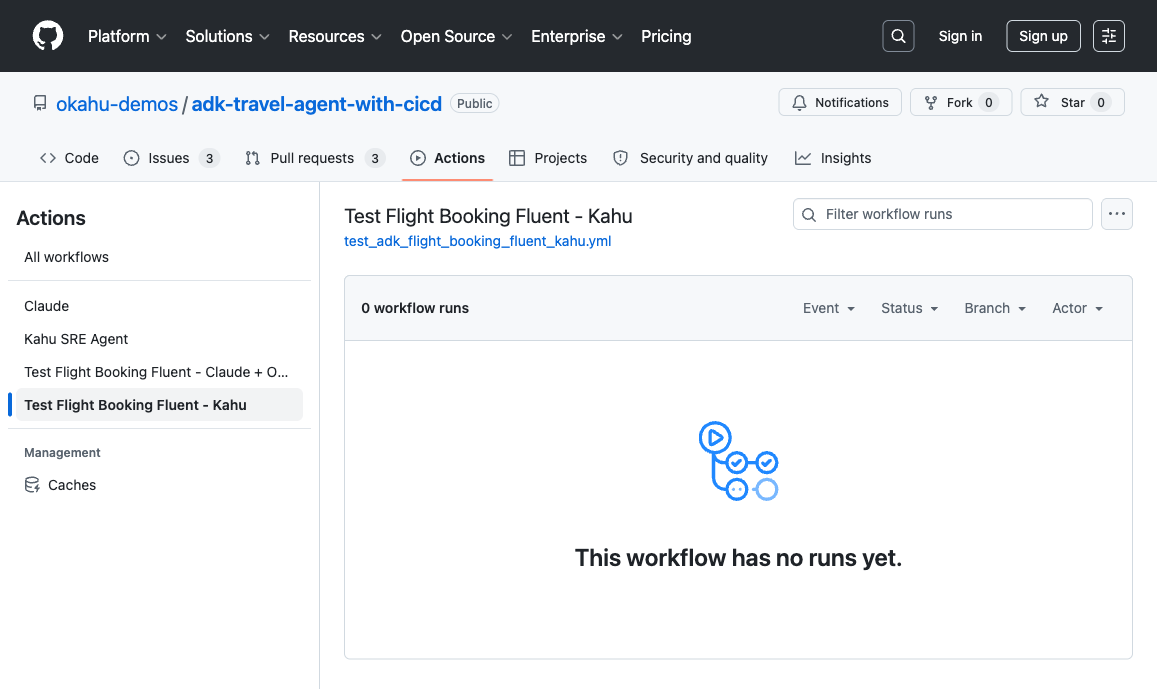

1. Click Run workflow to trigger it manually

Start with Kahu

Run the Kahu workflow first to see the automated RCA flow. Once you're comfortable with how traces and issues work, try the Claude + Okahu Eval workflow for the full autonomous remediation loop.
